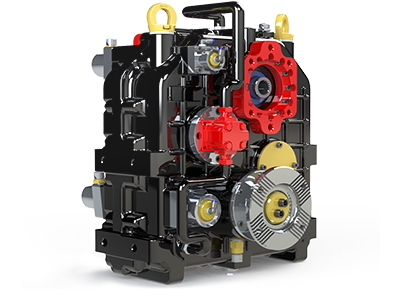

Hydrostatic Gearbox - UARA.865
800 KGM vertical Hydrostatic Split Shaft PTO. It can provide 100% of input speed. The system can Engage/Disengage with pneumatic control. PTO outputs can be design with all ISO standard flanges as well as suitable pads for any kind of hydraulic pump and hydromotor. UARA.865 has 2 Hydraulic Pump Pads and 1 Hydromotor Pad and also, one more Hydraulic Pump Pad as optional. Cooling system, can be built on the Hydrostatic Gearbox as optional.
Equivalent To: OMSI HT400/1200
OMSI, PARKER CHELSEA, OPTIMA, USA, EUROPE
WESTERN, VOLVO, IVECO, FORD TRUCKS, Freightliner, WESTERN STAR TRUCKS
- Hydrostatic Split Shaft PTO
- 2 Pump Pads
- 1 Hydromotor Pad
- Control Type: Pneumatic
- Mounting Type: Split Shaft
- Weight: 220 KG / 485 LBS
- 1+1 warranty (+1 Year Extended If Control Panel Bought with Unit)
- 10 Years Spare Part Back Up
Options
- RPM Counter
- Engage/Disenagage Sensor
- Drum Brake
- Cooling System
- 3rd Pump Pad
Applications
- Sewer Cleaning Combination Vehicle
- Water Jetting Truck
- Vacuum Truck
- Sweeping Trucks
- Cleaning Trucks
- Fire Fighting Trucks
| Max Torque (Normal Drive) | 800 KGM / 7845 Nm / 5786 LB-FT |
| Max Torque (Hydrostatic Drive) | 300 KGM / 2170 LB-FT |
| Max PTO Output Power | 110 kW / 147 HP |
| Internal Ratio from Hydromotor to Differential | 4.5/1 |
| Required Oil | 9 lt / 10.5 qt / 304 oz |
Other SPLIT SHAFT PTO
Hydrostatic Gearbox - UARA.1100
SPLIT SHAFT PTO

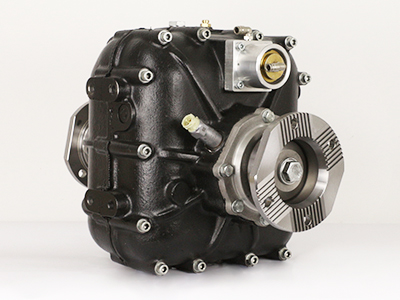

Split Shaft PTO - UARA.3003
