Power Take-Off HYD.03.120
Hyundai Power Take-Off (PTO)
Kozmaksan Hyundai Power Take OFFs designed for Hyundai series main transmissions. Kozmaksan HYD PTOs has Single output model, Side Mounting type option and available for UNI&ISO mounting housing or suitable for flange connections.
Hyundai Power Take-Off (PTO)
- Mounting Type: Left Side PTO
- Control Type: Pneumatic&Mechanic
- Weight: 13 kg / 33 lb
- Sense of Rotation: Opposite of Engine Shaft
- 1 Year Warranty
- 10 Years Spare Parts Warranty
Options
- UNI & ISO & Flange Mountings
- Engage/Disengage Sensor
- Control Cabel and Lever with Mechanic PTOs
Applications
- Garbage Truck
- Crane Truck
- Dump Truck
| Max. Torque | 23 KGM / 225 Nm / 166 LBS-FT |
| Max. Power | 24 kW / 32 HP |
| Available Internal Ratios | 1/1.17 |
| Max. Speed | 2000 RPM |
Catalogue of HYD.03.120

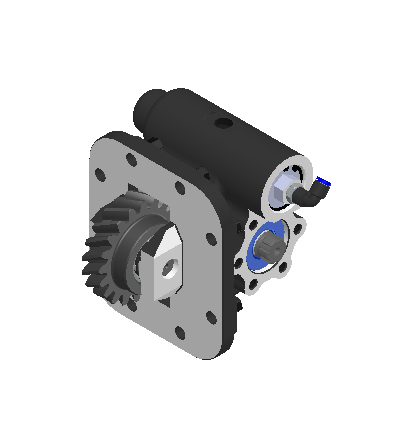

ISO Output

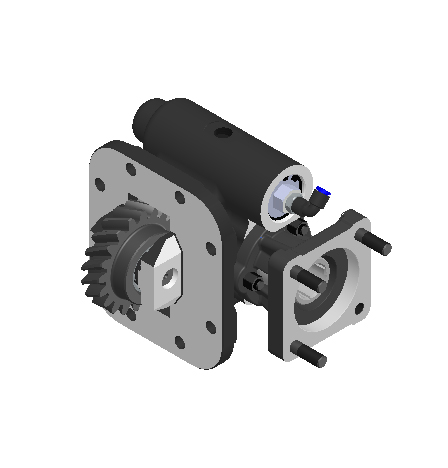

UNI Output

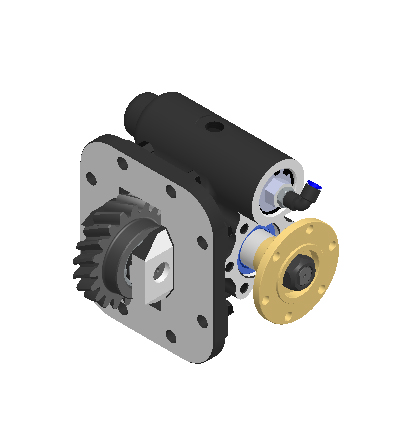

Flange Output
