Isuzu PTO ISZ.06.MYY5T

Power Take-Off ISZ.06.MYY5T

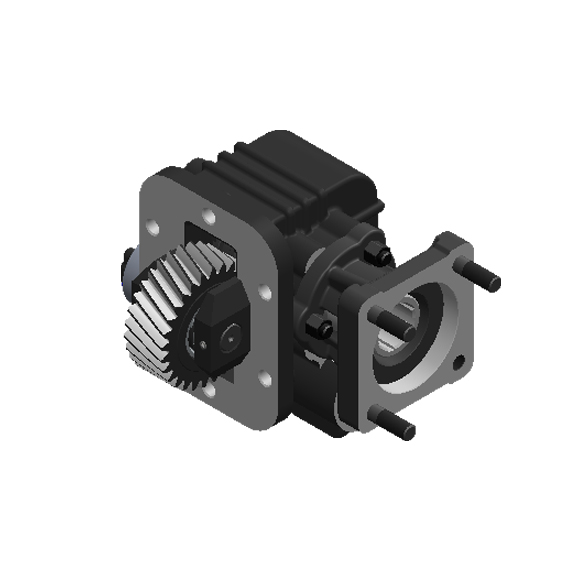

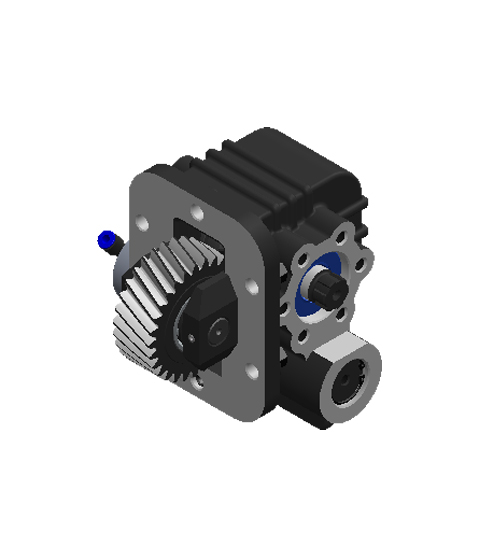

Isuzu Power Take-Off (PTO)

Kozmaksan Isuzu Power Take OFFs designed for Isuzu trucks. Kozmaksan Isuzu PTOs has Single output model, Side Mounting type option and available for UNI&ISO mounting housing or suitable for flange connections. Depending on PTO output type, torque capacity reaches up to 41 KGM.

Kozmaksan Gearbox Code: ISZ.06.MYY5T
Suitable Transmission Codes: MYY5T / MOY-9F / MOY-9H / MOYCR / MYY-6S / MOYMB / MOYNA / MYY-5S / MYY-6P/ MOYGX / MOY4N / MOYNB / MOYNC / MYY5R / MYY5D / MOYPN / MOYUK / MOYMC / MOYMR / MOYPZ ( 5,315-5,979 )
Used Trucks
NLR85L (ED6AYG-HD6AYG) / NNR85L (FD5AYG-HD5AYG) / NPR75L (HL5VAYGN-KL5VAYGN-KL5VAYG) / NPR 66-71-75-77 ISUZU / NKR 250 / NPR 250 / NKR 66 E2L / HINO 300 SERI 4X2 / NQR 70 P / ELF NKR71 / ELF 130 / NPR 66L / NQR71PL / NPR85L / 4.3 NPR 70 / NKR66E / NPR66P / NQR71R / NPR 66 LL / HINO DUTRO / NQR71PL / NPR 75 LONG / NLR / NLR LONG / NNR / NNR LONG / NPR 75 / N 10 / NPR 8 / NPR 8 LONG

Isuzu Power Take-Off (PTO)

Mounting Type: Left Side PTO
Control Type: Pneumatic
Weight: 13 kg / 28,5 lb
Sense of Rotation: Opposite of Engine Shaft
1 Year Warranty
10 Years Spare Parts Back Up

Options

UNI & ISO & Flange Mountings
Engage/Disengage Sensor
Control Cabel and Lever with Mechanic PTOs

Applications

Garbage Truck
Crane Truck
Dump Truck

Max. Torque (UNI / ISO)	23 KGM / 225 Nm / 166 LBS-FT
Max. Power (UNI / ISO)	24 kW / 32 HP
Max. Torque (Flange)	41 KGM / 296 LBS-FT
Max. Power (Flange)	42 kW / 56 HP
Available Internal Ratios	1/1.03
Max. Speed	2000 RPM
