Power Take-Off MB.12.211

Power Take-Off MB.12.211

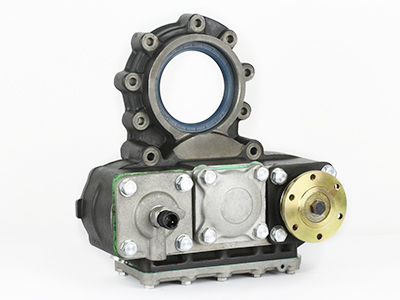

Mercedes Power Take-Off (PTO)

Kozmaksan Mercedes Power Take OFFs designed for Mercedes AXOR - ACTROSS trucks on G series main transmissions. Kozmaksan Mercedes PTOs has Single&Double output models, Rear Mounting type option and available for UNI&ISO mounting housing or suitable for flange connections.

  • Kozmaksan Product Code: MB.12.211
  • Suitable Main Transmission: G 125-16 / G 135-16 / G 155-16 / G 180-16 / G 200-16 / G 210-16 / G 240-16 / G 255 / G 210-16 / G 211-16 / G 240 / G 260-16 (17,03) G 260-16 (11,9-15,9-14,2-11,7-9,75) / G 221 - 9 / 16,02 EPS (IdNr: 715561 Code: GD5) / G 181-9 (BRAZIL) / G 141-9 EURO 6 / G 131-9 (16,02-14,57) EPS (IdNr: 715570 Code: NC5) / G 231-16 / G 241 / G 281 / G 330-12 (11,63-16,17)
  • Used Trucks
    1628-1835-1840-1841-1843-1846-1858-2535-3028-3228-3235-3326-4040-4141-4148 / AXOR MERCEDES 1831-1833-1834-2040-2540-2543-2553-2640-3225-3235-3236-3340 - 3344-4038-4140-4143-2640CL-3240C-4041-4148
Share:

Mercedes Power Take-Off (PTO)

  • Mounting Type: Rear PTO
  • Control Type: Pneumatic
  • Weight: 30 kg / 66 lb
  • Sense of Rotation: Same as Engine Shaft
  • 1 Year Warranty
  • 10 Years Spare Parts Warranty

Options

  • Engage/Disengage Sensor
  • Second PTO Output

Applications

  • Garbage Truck
  • Crane Truck
  • Dump Truck
Max. Torque 46 KGM / 451 Nm / 332 LBS-FT
Max. Power 47 kW / 63 HP
Available Internal Ratios 1/1.53
Max. Speed 2000 RPM

MB.12.211 Catalogue

Download
