Power Take-Off MTS.01.35S5

Power Take-Off MTS.01.35S5

Mitsubishi Power Take-Off (PTO)

Kozmaksan Mitsubishi Power Take OFFs designed for MITSUBISHI  trucks. Kozmaksan Mitsubishi PTOs has Single output model, Side Mounting type option and available for UNI&ISO mounting housing or suitable for flange connections. Depending on PTO output type, torque capacity reaches up to 30 KGM.

  • Kozmaksan Gearbox Code: MTS.01.35S5
  • Suitable Transmission Codes:  MO 35S5 - MO 35T3 - MO 35S6
  • Used Trucks : TF A35 / TF A35L / TF B35 / TF B75 / TF B75L CANTER MITSUBISHI / 515 / 516 / 715 / 815 CANTER - CANTER 616- FEC60T1-65T1 / FEA21BL4SA21 / FE21EL4SA21 / FEB21CL4SA22 / FEB91EL4SA23 / FEB91EL4SA27 / FEB91GL4SA23 / FEA21EL4SA25 / FEB91EL4SA29
Share:

Mitsubishi Power Take-Off (PTO)

  • Mounting Type: Left Side PTO
  • Control Type: Mechanic&Pneumatic&Vacuum
  • Weight: 9 kg / 20 lb
  • Sense of Rotation: Opposite of Engine Shaft
  • 1 Year Warranty
  • 10 Years Spare Parts Back Up

Options

  • UNI & ISO & Flange Mountings
  • Engage/Disengage Sensor
  • Control Cabel and Lever with Mechanic PTOs

Applications

  • Garbage Truck
  • Crane Truck
  • Dump Truck
Max. Torque 30 KGM / 294 Nm / 216 LBS-FT
Max. Power 31 kW / 41 HP
Available Internal Ratios -
Max. Speed 2000 RPM

Catalogue of MTS.01.35S5

Download

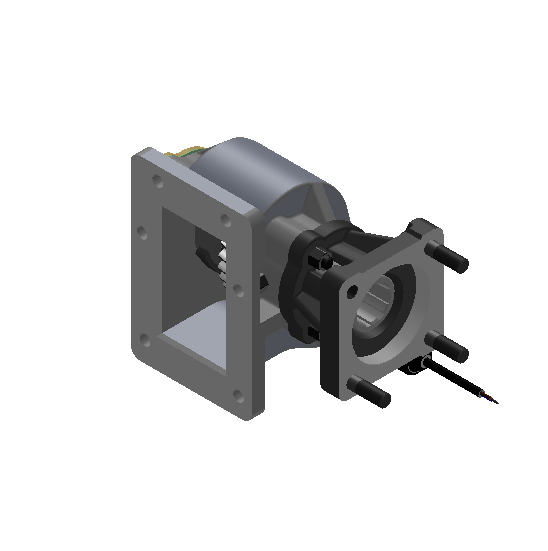

ISO Output

ISO Output

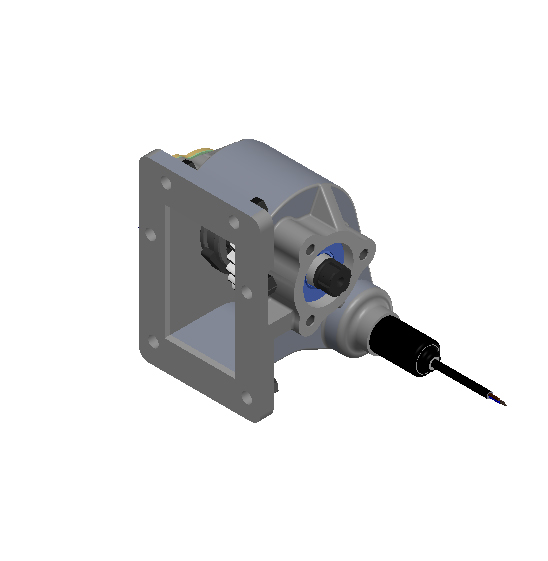

UNI Output

UNI Output

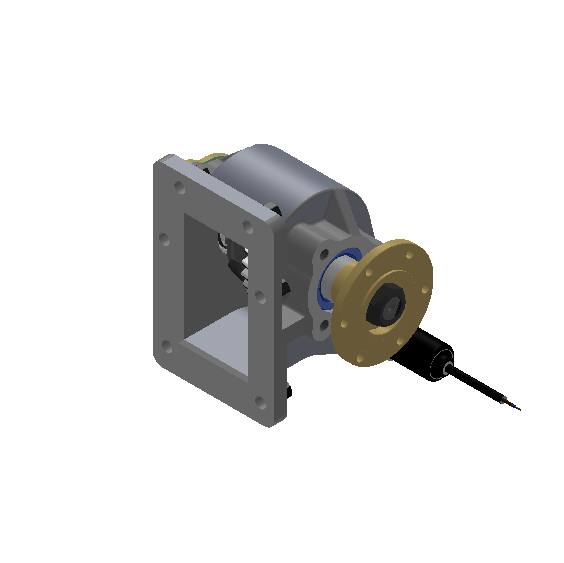

Flange Output

Flange Output
