Tomas De Fuerza-Eje Dividido

QUE PUEDES ESPERAR DE UNA CAJA DE CAMBIOS?
QUE TIPO DE TOMAS DE FUERZA DEEJE DIVIDIDO PUEDESPEDIR?

Necesita hacer funcionar 1 o 2 o 3 bombas en su camión? Necesita hacer que funcionen de forma independiente o al mismo tiempo? No quiere detener su camión para activar sus bombas? Desea hacer funcionar su bomba de agua mientras conduce su vehículo? Desea construir su camión con un sistema hidrostático? Necesita instalar su toma de ferza de eje dividido horizontal o verticalmente? Necesita instalarla sobre o bajo el chasis?

SPLIT SHAFT POWER TAKE OFF

SPLIT SHAFT PTO is used in cases where Transmission PTO's are not capable of providing the required power for the superstructure. The split shaft PTO it is located on the truck chassis between the main transmission and differential. These gearboxes are mainly used for Fire Fighting Trucks, Cleaning Combination Trucks, Sweeping Trucks and Road Maintenance Trucks.

SOME DETAILS FOR SPLIT SHAFT POWER TAKE OFF

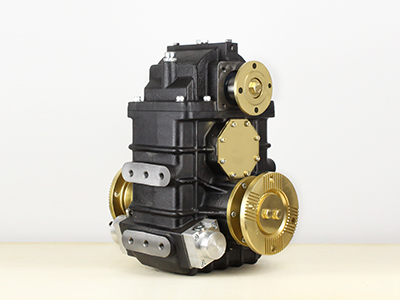

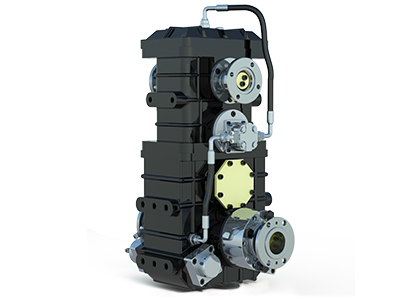

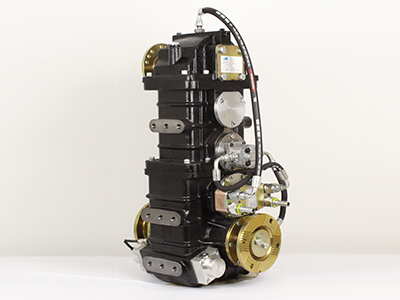

Depends on Truck Split Shaft PTO can be very various. Split Shaft Units can be vertical or horizontal if Split Shaft PTO is Vertical; it can be 3 axis such as UARA.2002 , 4 axis such as UARA.2006 or 5 axis such as UARA.2005. When length of the gearbox is increased lubrication system need to be built on the gearbox also. If the installation is not done properly, heating problem can be seen. Even installation is done greatly, in some application superstructure works over and over hours and this is cause of heating. For solution cooling system should be installed on the gearbox.

Although it is optional Split Shaft Units can be controlled by sensors. With Engage & Disengage sensor operator can easily observe if superstructure is on or off and can observe the revolution value with rpm counter sensor. Before selecting Split Shaft PTO, Truck CVW should be checked. Trucks GVW can be from 3 tons to over 30 tons. According to radial force, every truck needs different solutions. When we categorize trucks we see 4 types. Extra Heavy Duty Trucks, Heavy Duty Trucks, Medium Duty Trucks, Light Duty Trucks. Every truck need different solutions and different Split Shat Units

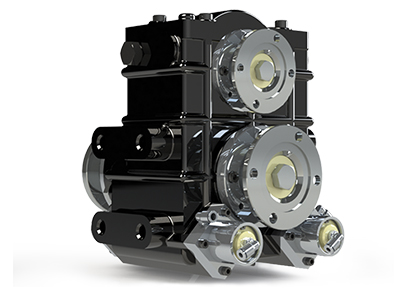

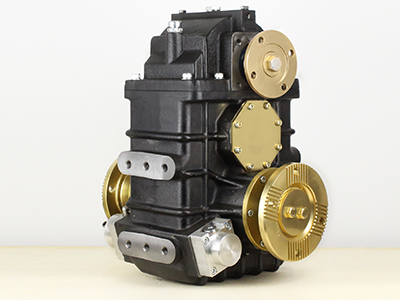

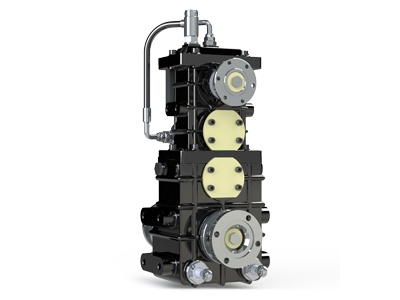

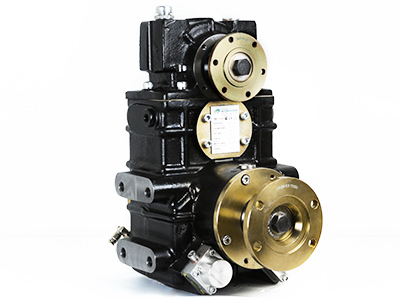

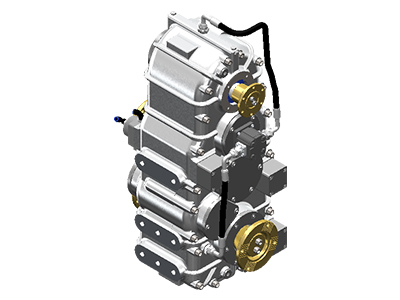

PUMP&ROLL FEATURE: Pump&Roll Feature which means you can make run your superstructure while you drive your truck. It is very intended feature especially for Fire Fighting Truck and Water Truck manufacturer. During drive, main gear should not be changed. Kozmaksan Light Duty 400 series(UARA.405 UARA.400 UARA.404 UARA.401), Medium Duty 800 series( UARA.801 UARA.806 UARA.805) , Heavy Duty 2000 series (UARA.2002 UARA2006 UARA.2005) units are all have Pump&Roll Feature. For more information please go to “Technical Support”

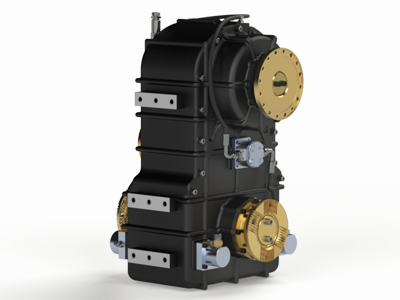

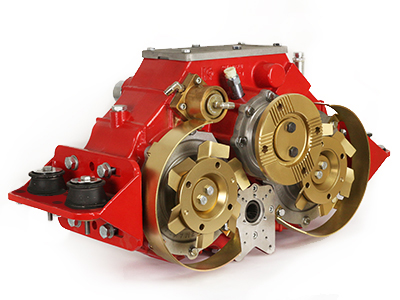

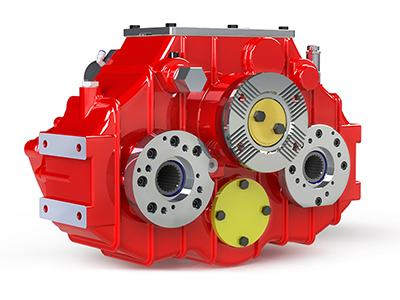

HOT SHIFT FEATURE: Especially for Vacuum Cleaning Truck, Sewer Cleaning Combination Truck, Water Jetting Truck “Hot Shift Feature” is very desirable feature. With clutch mechanism not necessary to press clutch pedal during engage/disengage process. Kozmaksan Hot Shifted Featured products are UARA.3005 UARA.2400 UARA.450 UARA.240

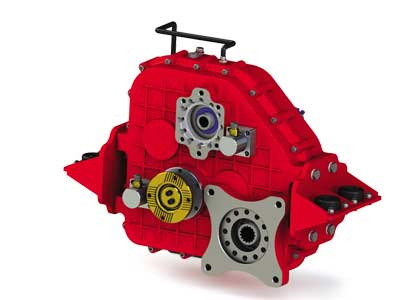

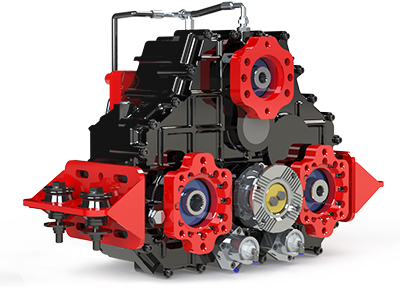

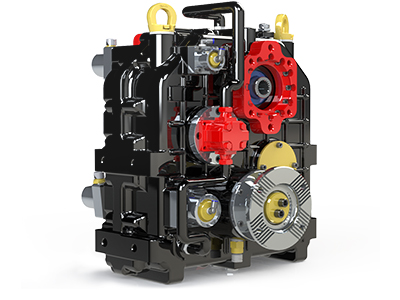

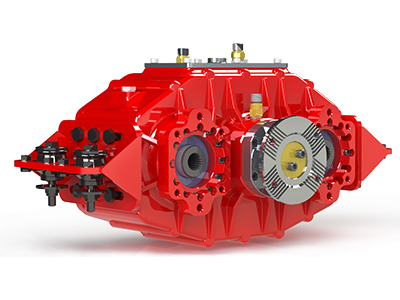

HYDROSTATIC DRIVE: Typical Pump&Roll Featured Kozmaksan Split Shaft Units are transferring power differential and the equipment during drive. That means power is divided. The aim of Hydrostatic Drive technology is to transfer movement to the differential even by split shaft unit in full operation with the superstructure. On the other hand, Htdrostatic Drive provides low speed while superstructures needed to be run with high-speed values. Especially Sweeping Trucks, Salt Spreaders, multi-purpose trucks for road maintenance, Airport Fire-Fighting Trucks can be good application for this system. With hydrostatic gearboxes, you do not need to use the second engine with this system. Thanks to Hydrostatic Drive you can build your truck with lower fund and you will economize fuel expense. Kozmaksan Hydrostatic Gearboxes are UARA.1100 UARA.2501 UARA.865 UARA.860

Tomas De Fuerza-Eje Dividido

QUE PUEDES ESPERAR DE UNA CAJA DE CAMBIOS? QUE TIPO DE TOMAS DE FUERZA DEEJE DIVIDIDO PUEDESPEDIR?

Hemos estado pensando durante 47 sobre todo lo que nos puede pedir. Y hemos construido productos que satisfacen todas sus exigencias. Bienvenido a la más amplia gama de caja de cambios. Bienvenido al mundo de Kozmaksan.
